返回當前位置：首頁 / 觸摸屏顯示器 / 觸摸顯示器12.1寸電容屏
類別：觸摸顯示器12.1寸電容屏
全國咨詢服務熱線:189 2521 2926

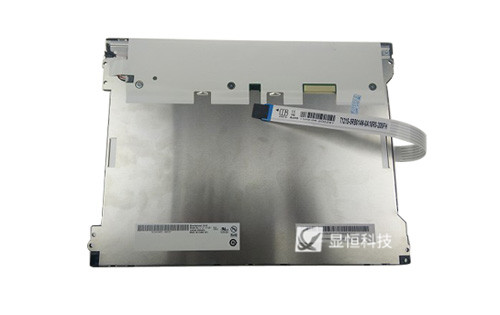

| AUO友達12.1寸觸摸顯示器,工業觸摸顯示器,12.1寸觸摸屏顯示器G121XN01-V0觸摸屏一體機 基本參數 | |
| 制造商(Productor) | 友達/AUO |
| 產品型號(MODEL) | G121XN01-V0 |
| 屏尺寸(Size) | 12.1" |
| 分辨率(Resolution) | 1024×768 |
| 分辨率簡稱(Resolution Name) | XGA |
| 顯示比例(Display scale) | 4:03 |
| 像素排列(Pixel Arrangement) | RGBW矩形 |
| 點距(Pixel Pitch) | 0.120×0.120 mm |
| 產品組成(Panel Composition) | 液晶屏, |
| 面板類型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【工業觸摸顯示器】, |
| 顯著特征(Panel Features) | 【灰階可選】, 【白光LED】, 【翻轉顯示】, 【自帶LED驅動】, 【霧面】, 【廣視角】, 【寬溫】 |
| AUO友達12.1寸觸摸顯示器,工業觸摸顯示器,12.1寸觸摸屏顯示器G121XN01-V0觸摸屏一體機光電參數 | |
| 顯示模式(Display mode) | TN，常白顯示，透射式 |
| 亮度(Luminance) | 500 nits |
| 對比度(Contrast Ratio) | 700:01:00 |
| 顏色(Color) | 262K/16.2M |
| 色彩飽和度(Color Saturation) | 70%NTSC(CIE1931) |
| 響應時間(Response) | 25/10 (Tr/Td) ms |
| 可視角度(Viewing Angle) | 80/80/80/80(上/下/左/右) |
| 白場色度(White Field Chroma) | X:0.310; Y:0.330 |
| 白場變動(White Field Dynamic) | 1.33 (5 points) |
| 掃描頻率(Scanning Frequency) | 60Hz |
| 反轉掃描(Reverse Scan) | 翻轉 (180°) |
| 信號類型大類(The kind of Singnal) | LVDS |
| 接口類型(Interface) | LVDS |
| 信號接口定義(Singnal Interface Definition) | LVDS-20P1C8B-080B |
| 驅屏電壓(Drive-screen voltage) | 3.3V |
| 面板輸入電流(Input Current) | 590mA |
| 信號接口類型(Kind of Singnal Interface) | 端子 |
| 信號接口品牌(Brand of Singnal Interface) | E&T |
| 信號接口型號(Model of Singnal Interface) | MSB240420E |
| 信號接口腳距(Pitch of Singnal Interface) | 1.25 mm |
| 信號接口數量(Quantity of Singnal Interface) | 1 pcs |
| 信號接口腳數(Pin of Singnal Interface) | 5 pins |
| AUO友達12.1寸觸摸顯示器,工業觸摸顯示器,12.1寸觸摸屏顯示器G121XN01-V0觸摸屏一體機結構參數 | |
| 工作溫度(Operation Temperature) | -30 °C ~ 80 °C |
| 存儲溫度(Storage Temperature) | -30°C ~ 80°C |
| 表面處理(Surface Technology) | 霧面，Hard coating (3H) |
| 顯示區域(Active Area) | 245.76×184.32 mm |
| 可視區域(Display Area) | 250.8×189.4 |
| 外形尺寸(Outline) | 279.00× 209.00×9.00 mm |
| 觸摸屏(Touch Panel) | 無 |
| 燈管位置(Lamp Position) | 側入式光源(頂部) |
| 背光類型(Backlight) | WLED |
| 背光壽命(Life Time of Lamp) | 50K Hours |
| 單一燈管電流(Current of Lamp) | 110mA |
| 內置燈管驅動器(Driver of Backlight) | 含LED驅動模塊 |
| 背光接口類型(Kind of Backlight Interface) | 端子 |
| 背光接口品牌(Brand of Backlight Interface) | E&T |
| 背光接口型號(Model of Backlight Interface) | 3808K-F05N-02R |
| 背光接口數量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口腳距(Pitch of Backlight Interface) | 1.25 mm mm |
| 背光接口定義(Backlight Interface Define ) | LVDS-20P1C8B-080B |
